Poultry Pig Chicken House Cone Fiberglass Frp Ventilation Fan Nylon Fiber Blade Cooling Fiberglass Exhuast Fan
This Fiberglass Exhuast Fan is characterized by low-noise operation and utilizes high-strength imported bearings for extended service life. Its shutters are constructed from high-strength, antioxidant fiberglass sheets, offering lightweight and distortion-resistant performance. The aerodynamically designed, injection-molded stainless steel blades deliver high air volume while ensuring durability against deformation and breakage. It is widely applicable for ventilation and cooling across agricultural and industrial sectors, including animal husbandry, poultry houses, livestock breeding, greenhouses, factory workshops, and textile mills.
Model :
AFY24-N3B740ZElectrical Source (V/Hz) :
380V/50HZNoise :
77Airflow(m3/h) :
12000Blade diameter(mm) :
660Number of blades (Pcs) :
3Installation dimension（mm） :
740*740Performance Characteristics
1. Reasonable flare design, lower noise, larger air volume, stronger ventilation, lower operating costs
2. Imported bearings, high strength, lower noise, durable
3. Synthetic PVC blinds based on the principle of air flow, anti-oxidation, light weight, no deformation, flexible opening, anti-air flow back
4. Widely used in livestock farms, factories, etc. It can effectively eliminate the dirty and humid gas in the farm, and eliminate the sweltering, smoke, exhaust and dust in the factory.
| Model/Specs | AFY24-N3B740Z | AFY36-N3B1070Z | AFY50-N3B1400Z | AFY55-N3B1560Z |
| Electric source | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
|
Dimension （without fan duct）（mm） |
800*800*490 | 1170*1170*596 | 1473*1473*545 | 1600*1630*655 |
|
Dimension （with fan duct）（mm） |
800*800*965 | 1170*1170*1170 | 1473*1473*1420 | 1600*1630*1320 |
| installation dimension（mm） | 740*740 | 1070*1070 | 1400*1400 | 1530*1560 |
| Blade diameter（mm） | 660 | 920 | 1300 | 1415 |
| Number of blades (Pcs) | 3 | 3 | 3 | 3 |
| Power（Kw） | 0.55 | 0.75 | 1.5 | 2.2 |
| Motor speed（rpm） | 1430 | 950 | 710 | 710 |
| Pole Number | 4P | 6P | 8P | 8P |
| Drive mode | Direct | Direct | Direct | Direct |
| Airflow（m3/h）OPA | 12000 | 24877 | 51034 | 59199 |
| Airflow（m3/h）25PA | 11010 | 22580 | 46755 | 54884 |
| Airflow（m3/h）50PA | 10020 | 20281 | 41645 | 48221 |
| Airflow（m3/h）75PA | 8050 | 17519 | 34762 | 39118 |
| Noise（dBA） | 77 | 78 | 80 | 82 |
Frame
Acid and alkali resistant, corrosion resistant, rust-free, UV resistant, impact resistant, aging resistant, high density, high strength, long service life

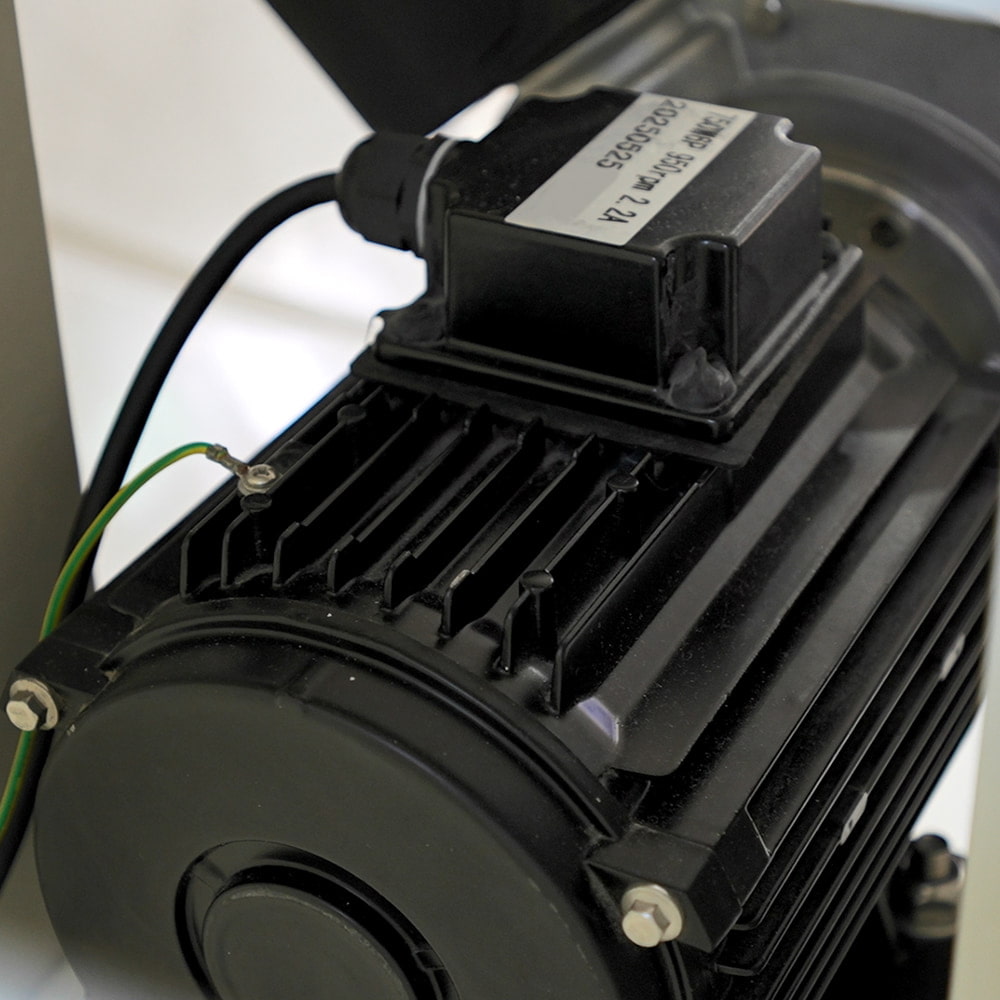

Motor
Customized silicon steel 10-grade motor, low noise, large air volume, low failure rate, high-strength motor bracket, effectively reducing noise

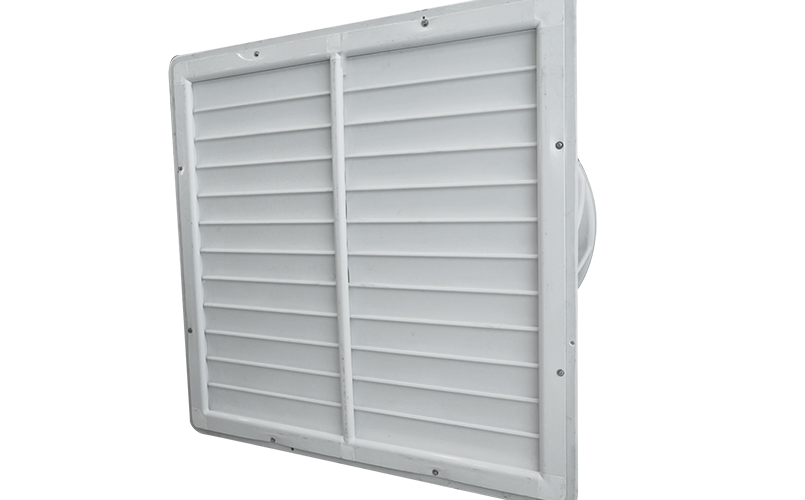

Shutters
The shutters are dustproof, rainproof, beautiful and generous. They open and close automatically based on the air flow principle, and do not require electricity or personnel to close.

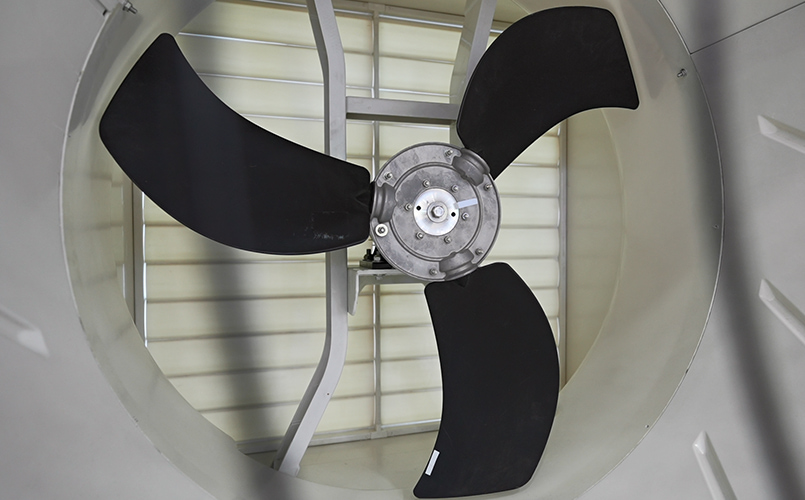

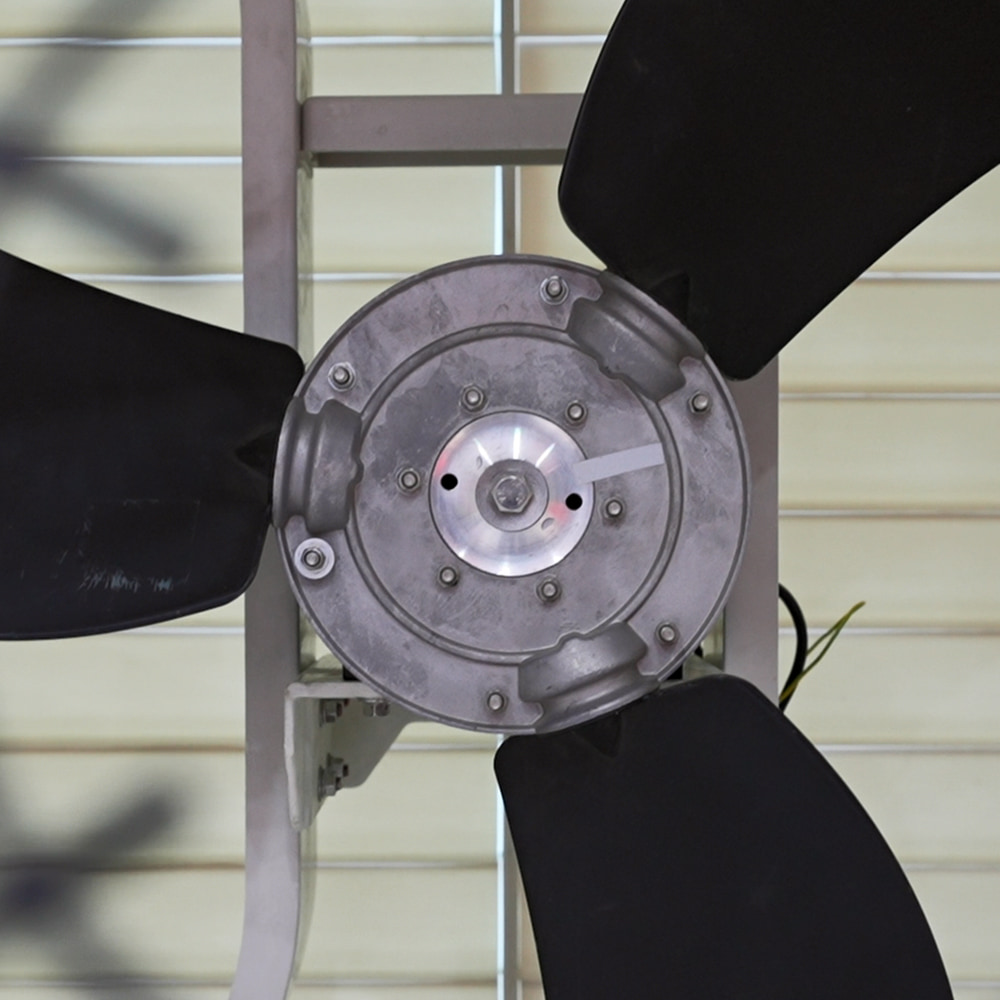

Fan blade
The fiberglass fan blades are integrally formed to discharge the resonance produced by the metal combination; they are acid and alkali resistant, quiet, run smoothly, have low wind resistance, and have a large exhaust volume.
This Fiberglass Exhuast Fan is characterized by low-noise operation and utilizes high-strength imported bearings for extended service life. Its shutters are constructed from high-strength, antioxidant fiberglass sheets, offering lightweight and distortion-resistant performance. The aerodynamically designed, injection-molded stainless steel blades deliver high air volume while ensuring durability against deformation and breakage. It is widely applicable for ventilation and cooling across agricultural and industrial sectors, including animal husbandry, poultry houses, livestock breeding, greenhouses, factory workshops, and textile mills.
