Home Industrial Evaporative Air Cooler

Small Size Mobile DC Evaporative Cooling Water Farm Greenhouse Swamp Fan Evaporative Cooling Air Cooler

Name: Small Size Mobile DC Evaporative Cooling Water Farm Greenhouse Swamp Fan Evaporative Cooling Air Cooler
Availability: InStock

Welcome to wholesale industrial air coolers from Aolan factory. Our Industrial Evaporative Air Cooler is used for small and medium-sized industrial plants, semi-open venues, outdoor exhibition venues, agricultural and animal husbandry bases, etc.

Model :
AZL30-ZX30C
Product Origin :
China
Electrical Source (V/Hz) :
380-415/50-60(V/HZ), 3-phase
Net Weight(±3kg) :
125(down) 152(up) 133(side)
Noise :
≤80 dBA
Controller :
LCD Control
Fan Speeds :
Multi-speed,Inverter
Fan Type :
Axial
Rated current :
7.1A
Airflow(m3/h) :
30000

Inquire Now

Categories

How can we help you?

The company adheres to the service principle of "everything for users" and has established a professional technical service team.

New Products

Description

Small Size Airflow Water Cooling air Cooler Industrial Evaporative Air Cooler Warehouse Factory Cooling System

industrial fan for factory

●16,000 m³/h High-Volume Air Delivery for 90-100 m² Rapid Cooling: One WIND AURAMO unit replaces multiple smaller coolers, blanketing medium-sized factories, workshops, and semi-open venues with fresh cooled air - eliminating hot spots at a fraction of the capital investment compared to traditional HVAC duct systems.

●Centrifugal Fan at 170 Pa Static Pressure for Extended Ductwork: Unlike standard axial-only industrial coolers, the centrifugal model pushes air through long duct runs and multiple outlet grilles, making it the ideal central cooling solution for partitioned factories, commercial kitchens, and multi-room facilities.

●85% Lower Electricity Cost Compared to Air Conditioning: Consuming only 0.75-1.0 kW to cool 100 m² - versus 8-12 kW for equivalent compressor-based cooling - WIND AURAMO delivers a full return on investment within a single summer season for facilities operating 12+ hours daily.

●Four-Sided Cooling Pad Intake for Maximum Evaporative Surface Area: The unique quad-intake design with (608+30)x732x100 mm pads on each face maximizes water-to-air contact, achieving industry-leading saturation efficiency above 82% for consistent discharge air temperatures even during peak afternoon heat.

●100-Liter Integrated Water Tank with Optional Pre-Cooling: The large-capacity reservoir supports 6-8 hours of uninterrupted operation per fill at standard conditions, while the optional pre-cooling system chills incoming water for enhanced temperature drop in extreme climates above 40°C ambient.

●Inverter-Driven Multi-Speed Motor for Precision Climate Control: Unlike fixed-speed competitors, the centrifugal model features inverter technology that continuously adjusts fan RPM to match real-time cooling demand - reducing energy consumption during milder hours while maintaining comfort.

Specification:

Model/Specs	AZL16-LX10JZ
	AZL16-LS10JZ
	AZL16-LC10JZ
	X-down discharge,S-up discharge,C-side discharge
Electric source	220V/1PH/50HZ(customize)
Power	1KW
Rated Current	6.5A
Airflow	16000m³/h
Fan Type	Centrifugal Fan
Fan Speeds	Multi-speed,Inverter
Pressure	170Pa
Vent Size (L*W)	555*555mm
Noise	≤63dBA
Dimension (LWH)	107810781020mm(down) 107810781055mm(up) 110410781020mm(side)
Pad Size (LWH)	(608+30)732100mm (608+30)73280mm
Net Weight (±3kg)	64(down)66(up) 76(side)
Controller	Optional
Pre-dust Filter	Optional
Pre-cooling	Optional
Group-control	Optional
Tem&hum Control	Optional
QTY/FULL(40HQ)	40(down/up/side)
QTY/SKD(40HQ)	87(down)/75(up)/85(side)

industrial water cooler manufacturers

Characteristics:

Special-designed fan blades
Self-designed fan, with large wind pressure
and sufficient air volume

industrial fan manufacturers in ahmedabad

Anti-bacterial evaporative cooling pad, Anti-mildew evaporative cooling pad, Anti-fire evaporative cooling pad and a series of evaporative cooling pad products.

New thickened engineering materials,to eliminate secondary materials. High temperature resistance,

strong thermal resistance, good toughness, not easy to deformation.

Air outlet and top cover are integrally injection-molded, ensuring good waterproofing and leak resistance.

Common designs use a cut-out top with metal outlets, which may cause air leakage and rust over time.

New thickened 100%

engineering materials, No secondary materials !

High temperature resistance, strong thermal resistance,

good toughness, anti-corrosion, anti-ultraviolet, anti-aging,

long life, Sasing warranty of more than 10 years.

It's pure and fresh. Paper is stronger,

less crush and better saturation,etc.

High cooling efficiency above 82%.

More advantages:

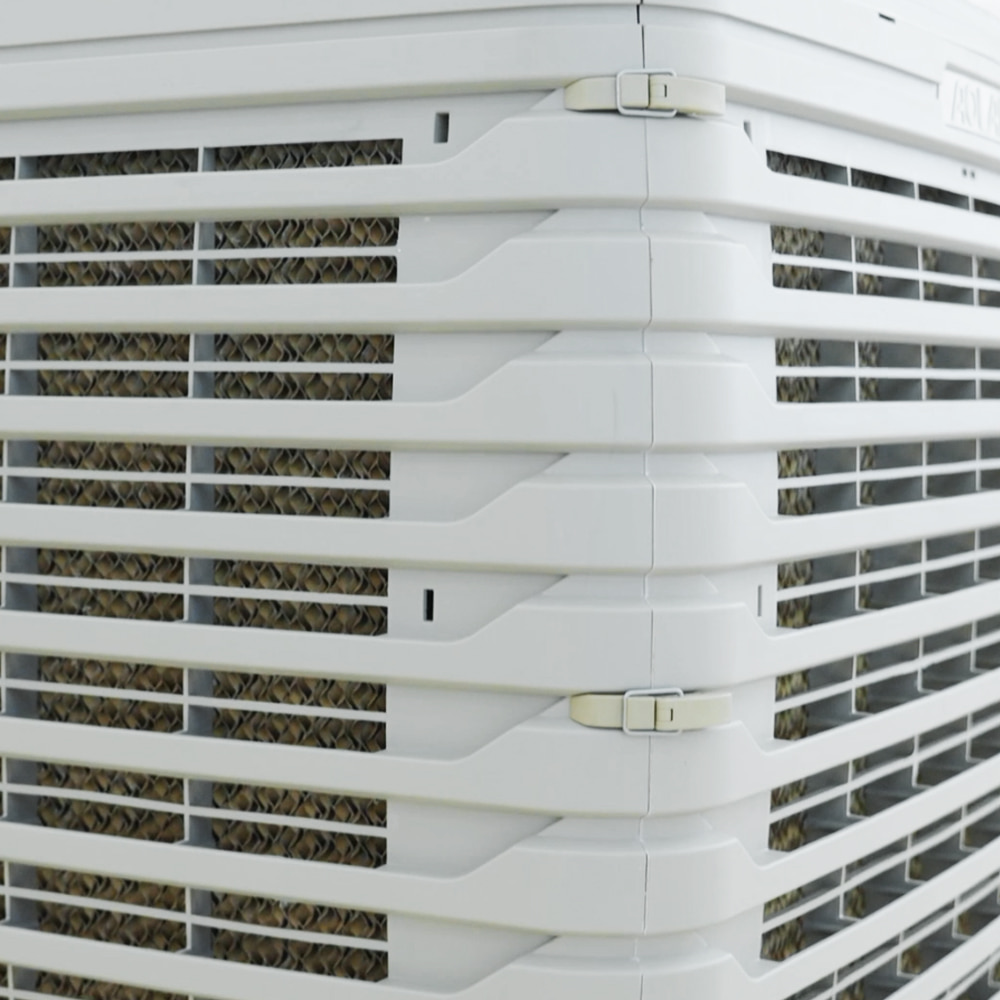

1. Durable Shell: High-strength, weather-resistant engineering plastics ensure a warranty exceeding ten years without deformation.

2. Enhanced Water Protection: Lower hook louver design prevents water drift and leakage, ensuring long-term integrity.

3. Easy Maintenance: Equipped with a molded dust filter for effortless disassembly and maintenance procedures.

4. Efficient Cooling: Utilizes raw wood pulp paper fiber composite evaporative pads for easy cleaning and powerful cooling capabilities.

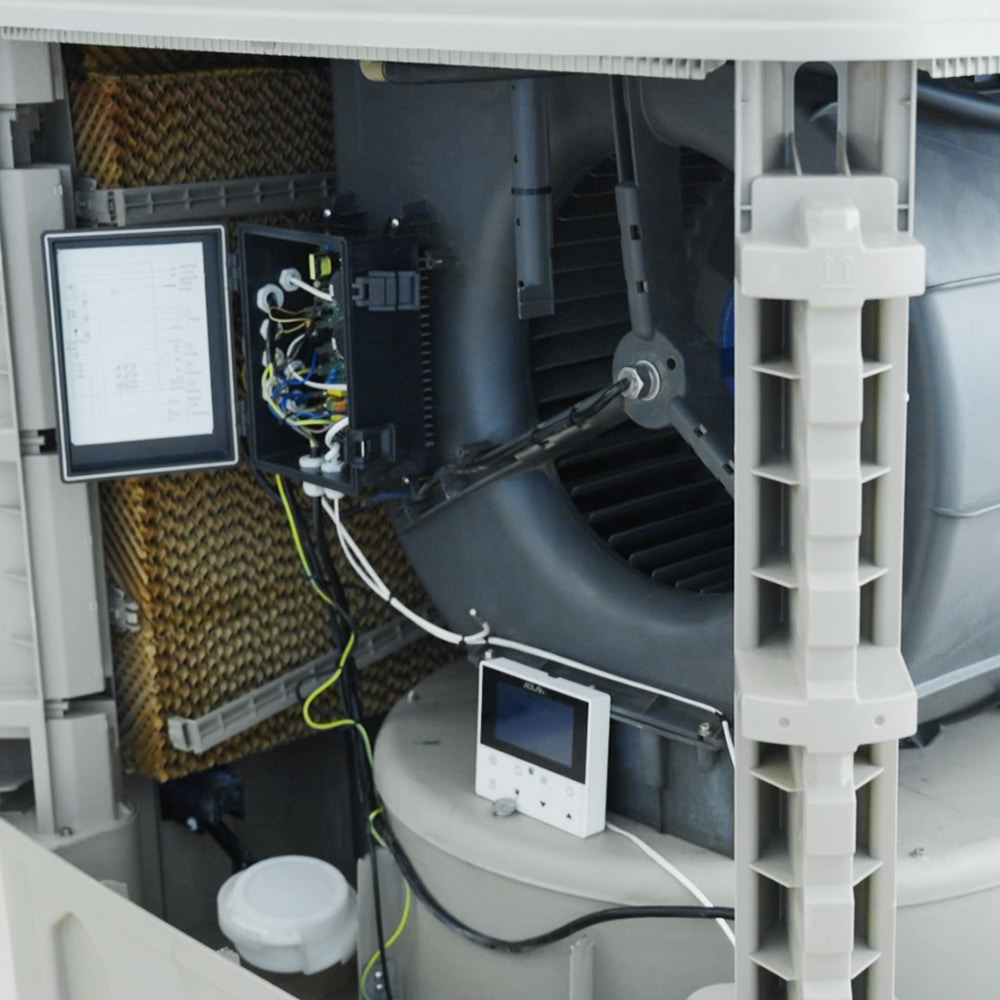

5. Superior Motor Design: Features high-quality fully enclosed aluminum shell motors for excellent heat dissipation and superior insulation protection.

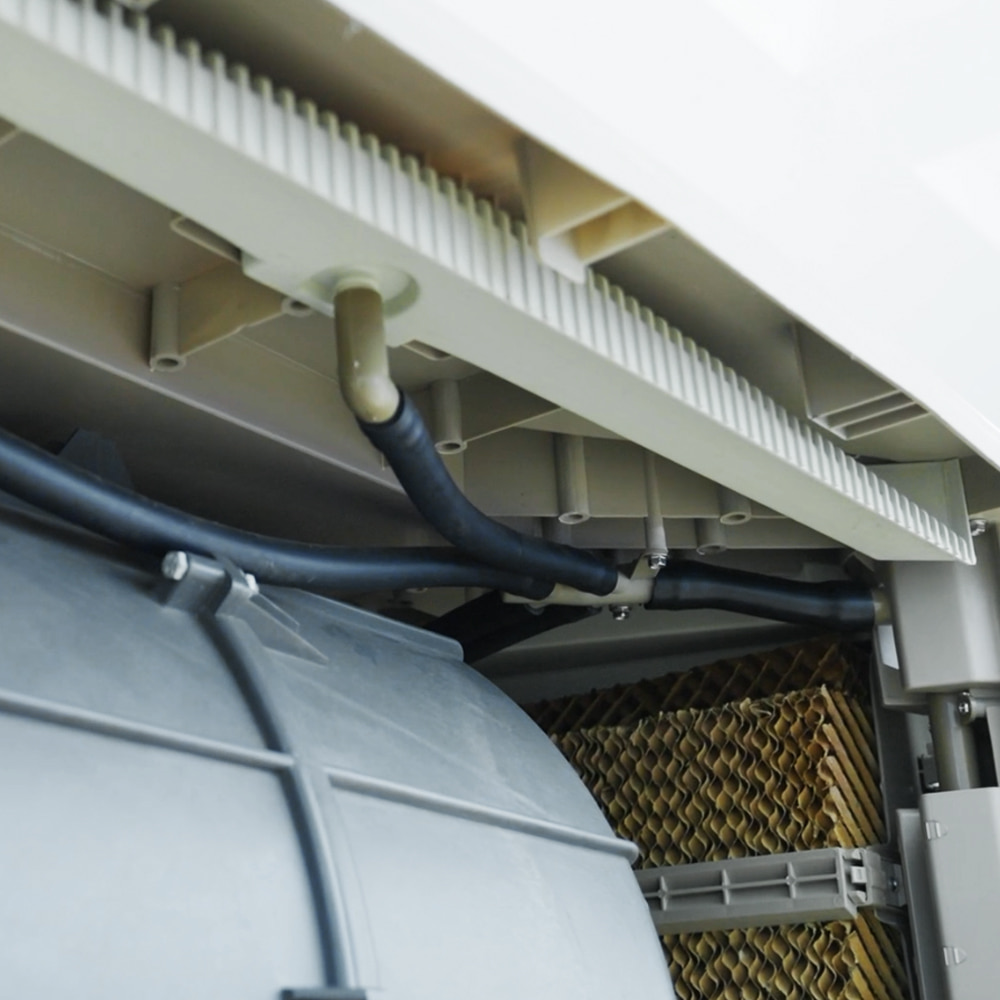

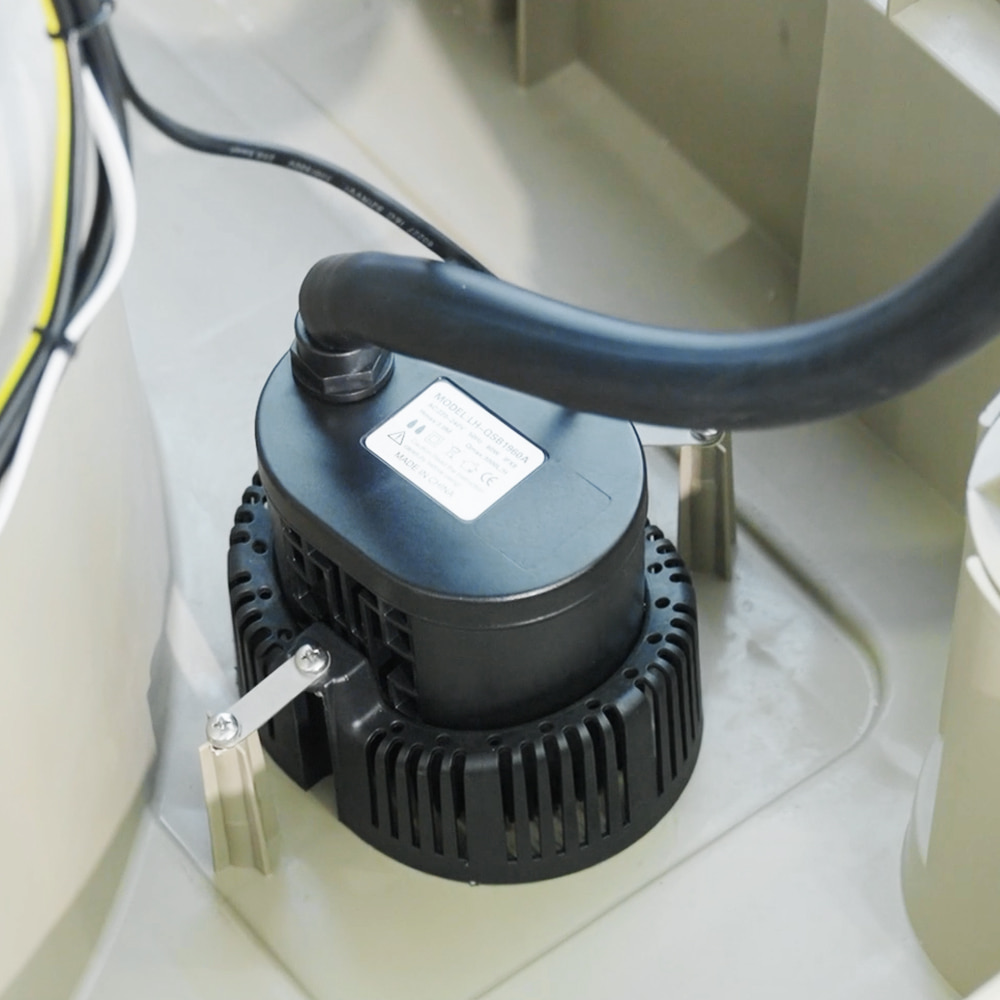

6. Automatic Water Control: Incorporates an automatic water system with an open water distributor for consistent water flow and minimal blockages.

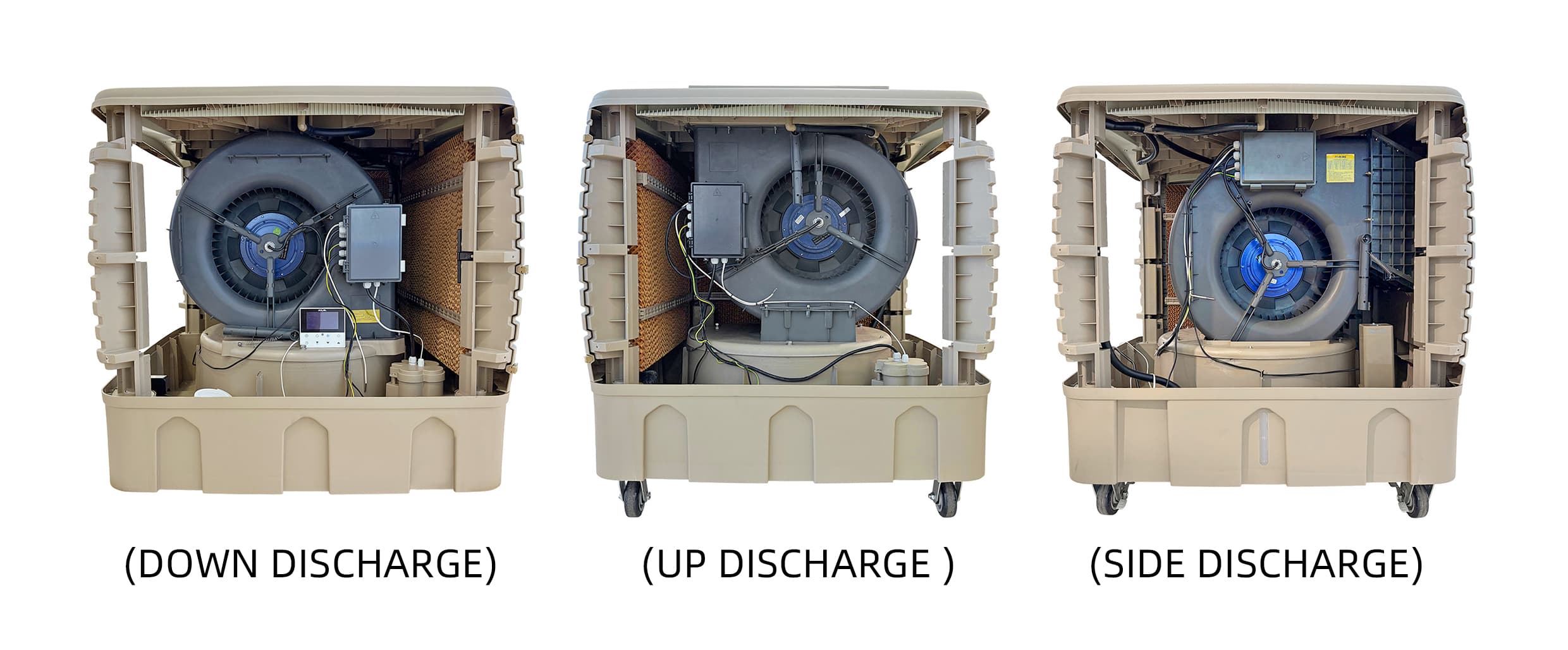

7. Versatile Air Supply: Offers three types of air outlets (top, down, side) to choose from, providing flexibility for various B2B applications.
