Home Industrial Evaporative Air Cooler

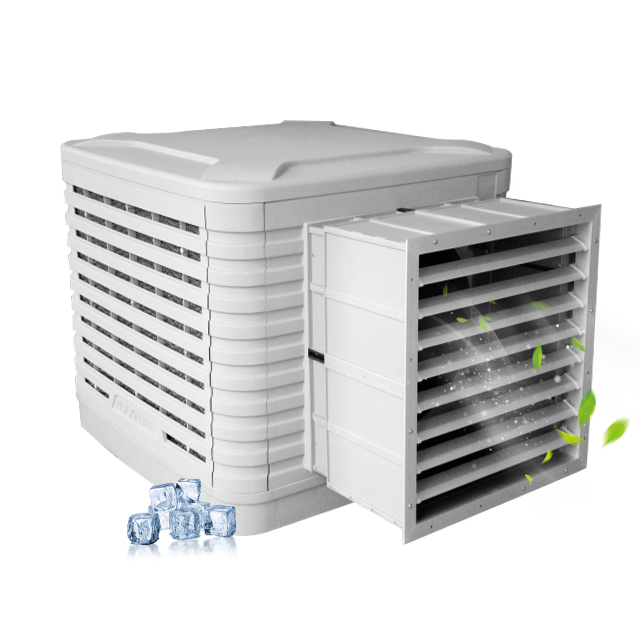

AZL10-ZX10J Wall Roof Mounting Air cooler Water air Cooler Conditioner air Cooler 10000 M3/h

Welcome to wholesale industrial air coolers from Aolan factory. Our Industrial Evaporative Air Cooler is used for small and medium-sized industrial plants, semi-open venues, outdoor exhibition venues, agricultural and animal husbandry bases, etc.

Model :
AZL10-ZX10J
Product Origin :
China
Electrical Source (V/Hz) :
110/220V/50Hz 1-phase
Net Weight(±3kg) :
52(down) 53(up)
Noise :
≤65 dBA
Controller :
LED Control
Fan Speeds :
Multi-speed, Inverter
Fan Type :
Axial
Rated current :
2.8A
Airflow(m3/h) :
10000

Inquire Now

Categories

How can we help you?

The company adheres to the service principle of "everything for users" and has established a professional technical service team.

New Products

Description

Wall Roof Mounting Air cooler Water air Cooler Conditioner air Cooler 10000 M3/h

This Industrial Evaporative Air Cooler features a UV-resistant, anti-corrosion engineering plastic shell for 10+ year durability. Key upgrades include a leak-minimizing hook louver side panel, easy-clean molded dust filter, and high-performance wood pulp cooling pads. It boasts a sealed aluminum-shell motor for heat dissipation and waterproofing, an anti-clog water distribution system, and high-airflow/low-noise operation. Safety is ensured by a flame-retardant low-water pump with thermal protection, with top/bottom/side air outlets for flexible installation.

Specification:

Model/Specs	AZL10-ZX10J
	AZL10-ZS10J
	X-down discharge,S-up discharge
Electric source	110/220 /50-60(V/Hz) 1-phase
Power	0.52KW
Rated Current	2.8A
Airflow	10000m³/h
Fan Type	Axial
Fan Speeds	Multi-speed,Silicon Control
Pressure	80Pa
Vent Size (L*W)(mm)	555*555
Noise	≤65dBA
Dimension (LWH)(mm)	10301030643mm (down) 10301030728mm (up)
Pad Size (LWH)(mm)	395498100mm
Net Weight (±3kg)	52(down) 53(up)
Operation Weight(kg)	70(down) 71(up)
Controller	LED Control
Pre-dust Filter	Optional
Pre-cooling	Optional
Group-control	Optional
Tem&hum Control	Optional
QTY/FULL(40HQ)	66(down/up/side)
QTY/SKD(40HQ)	95(down)/88(up)

Characteristics:

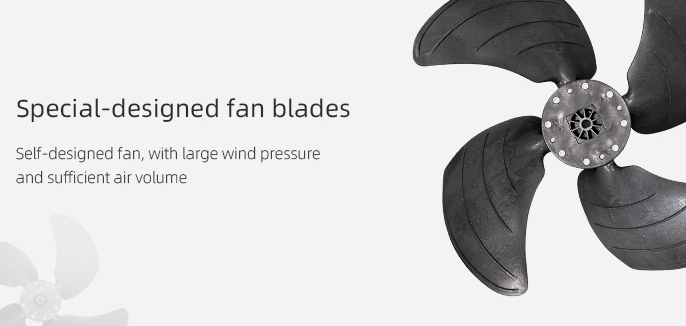

Special-designed fan blades

Self-designed fan, with large wind pressure

and sufficient air volume

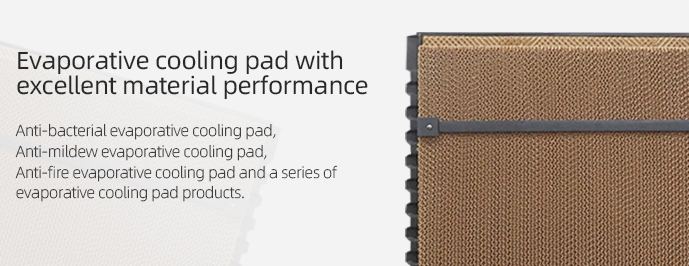

Evaporative cooling pad with excellent material performance

Anti-bacterial evaporative cooling pad, Anti-mildew evaporative cooling pad, Anti-fire evaporative cooling pad and a series of

evaporative cooling pad products.

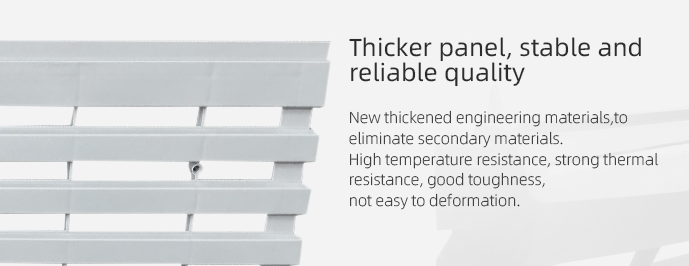

Thicker panel, stable and reliable quality

New thickened engineering materials,to eliminate secondary materials. High temperature resistance, strong thermal

resistance, good toughness, not easy to deformation.

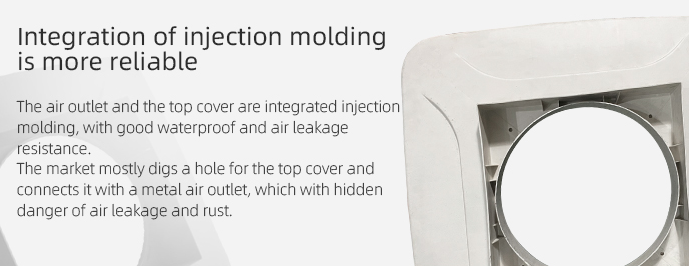

Integration of injection molding is more reliable

The air outlet and the top cover are integrated injection

molding, with good waterproof and air leakage resistance.

AOLAN PERFORMANCE MOTOR

1.A new generation of energy-saving products. (2) Aluminum alloy shell,no rust, fast heat dissipation.

2.High-density of pure copper coil, low resistance consumption. (4) with sufficientpower and air volum,low temperature rise, long life.

3.Anti-burning machine, with thermat protection switch protection.

NEW THICKENED 100% ENGINEERING MATERIALS, NO SECONDARY MATERIALS!

High temperature resistance, strong thermal resistance, good toughness, anti-corrosion, anti-ultraviolet, anti-aging,long life,

Casing warranty of more than 10 years.

More advantages:

1.Different fan speeds for choice: 1-phase variable-speed, 3-phase 1-spped or 2-speed.

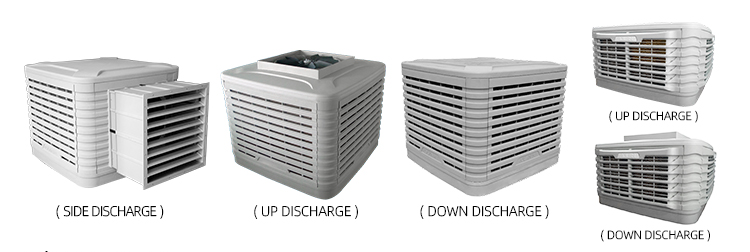

2.Different air discharges (top, down or side) meet different installation requirements.

3.Using LCD or standard controller, easy to operate.

4.Materials for casing are anti-UV, anti-corrosion, anti-aging, and no deformation.

5.Fan impeller is special designed to allow large airflow but lower noise.

6.Motor applied is moistureproof, waterproof with tiny temperature rise.

7.Using automatic control water system and open type water distributor, water can flow smoothly and distributor is not easy to block.

8.Using high efficient evaporative pads with large evaporation capacity, good cooling efficiency and easy to clean.
