Home Industrial Evaporative Air Cooler

AZL16-LX10JZ 16000CMH Roof Mounted Industrial Air Cooler Desert Cooler

Welcome to wholesale industrial air coolers from Aolan factory. Our Industrial Evaporative Air Cooler is used for small and medium-sized industrial plants, semi-open venues, outdoor exhibition venues, agricultural and animal husbandry bases, etc.

Model :
AZL16-LX10JZ
Order(MOQ) :
1
Product Origin :
China
Noise :
≤63 dBA
Power :
220V/1PH/50HZ (customize)
Water Capacity :
100 L
Controller :
LED Control
Fan Speeds :
6.5

Inquire Now

Categories

How can we help you?

The company adheres to the service principle of "everything for users" and has established a professional technical service team.

New Products

Description

Airflow Water Cooling air Cooler Industrial Evaporative Air Cooler Warehouse Factory Cooling System

This energy-efficient cooling unit effectively reduces the ambient temperature by 5-15 degrees Celsius. It features a low-water protection system that automatically stops the pump and issues a warning to prevent damage. The cooling pads are designed for easy removal and rinsing, offering great convenience. With low operating costs, it saves over 80% more electricity than traditional air conditioners. Additionally, it comes with a wide range of optional functions, including pre-cooling, auto-cleaning, timer on/off, vent mode, forced pump start, memory settings, pre-dust filter, winter filter, ozone generation, and motor filter.

Specification:

Model/Specs	AZL16-LX10JZ
	AZL16-LS10JZ
	AZL16-LC10JZ
	X-down discharge,S-up discharge,C-side discharge
Electric source	220V/1PH/50HZ (customize)
Power	1000W
Rated Current	6.5A
Airflow	16000m³/h
Fan Type	Centrifugal Fan
Fan Speeds	Multi-speed, Inverter
Pressure	170Pa
Vent Size (L*W)	555*555mm
Noise	≤63dBA
Dimension (LWH)	107810781020 (down) 107810781055 (up) 110410781020 (side)
Pad Size (LWH)	(608+30)732100 (608+30)73280
Net Weight (±3kg)	64(down)/ 66(up)/ 76(side)
Water Capacity	100L
Controller	LED Control
Cabinet material	Plastic
Pre-cooling	Optional
Group-control	Optional
Tem&hum Control	Optional
Loading quantity (1 40'HQ)	40(down/up/side)

Characteristics:

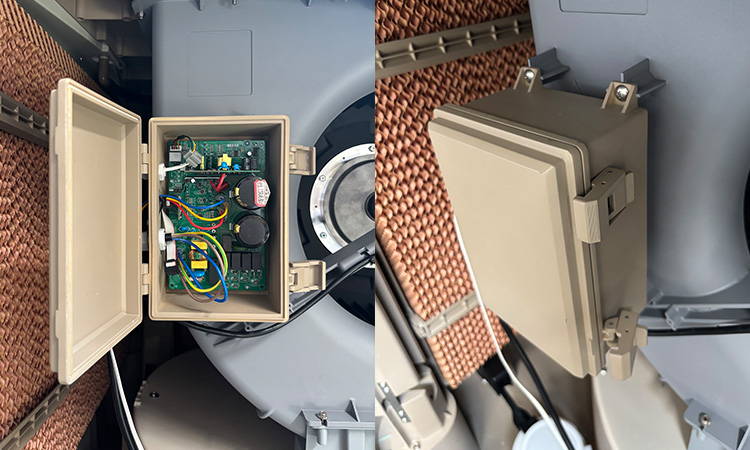

Control Box : water proof box with a buckle,easy for maintenance and inspection

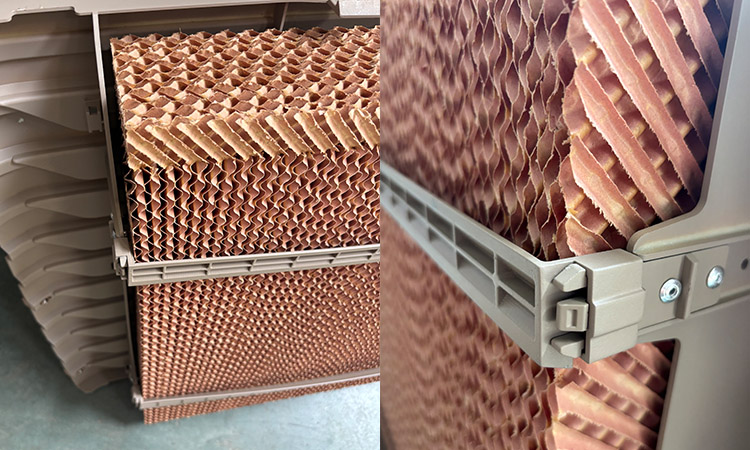

Retaining strips hold the pad in place for even water distribution. Using Buckle instead of screws, change the pad easier.

New thickened engineering materials,to eliminate secondary materials. High temperature resistance,

strong thermal resistance, good toughness, not easy to deformation.

Air outlet and top cover are integrally injection-molded, ensuring good waterproofing and leak resistance.

Common designs use a cut-out top with metal outlets, which may cause air leakage and rust over time.

More advantages:

1) Reduce the ambient temperature around 5-15 degree.

2) Protection: pump will stop automatically to protect the pump when the water level is low and give warnings.

3) Cooling pad easy to move and flush away, very convenient.

4) Low running cost (save you over 80% electricity than traditional air conditioner).

5) Many many optional functions like pre-cooling function, auto-clean function, timing switch down/off, vent function, compulsively start pump, memory function, pre-dust filter, winter filter, ozone, motor filter, etc.
