Home Industrial Evaporative Air Cooler

AZL18-ZX10JG Outdoor Conditioner 18000cmh Industrial Evaporative Portable Air Cooler

Welcome to wholesale industrial air coolers from Aolan factory. Our Industrial Evaporative Air Cooler is used for small and medium-sized industrial plants, semi-open venues, outdoor exhibition venues, agricultural and animal husbandry bases, etc.

Model :
AZL18-ZX10JG
Order(MOQ) :
1
Product Origin :
China
Electrical Source (V/Hz) :
110/220V/50Hz 1-phase
Net Weight(±3kg) :
49(down) 53(up) 55(side）
Noise :
≤65 dBA
Controller :
LED Control
Fan Speeds :
Multi-speed, Inverter
Fan Type :
Axial
Rated current :
4.0A
Airflow(m3/h) :
18000

Inquire Now

Categories

How can we help you?

The company adheres to the service principle of "everything for users" and has established a professional technical service team.

New Products

Description

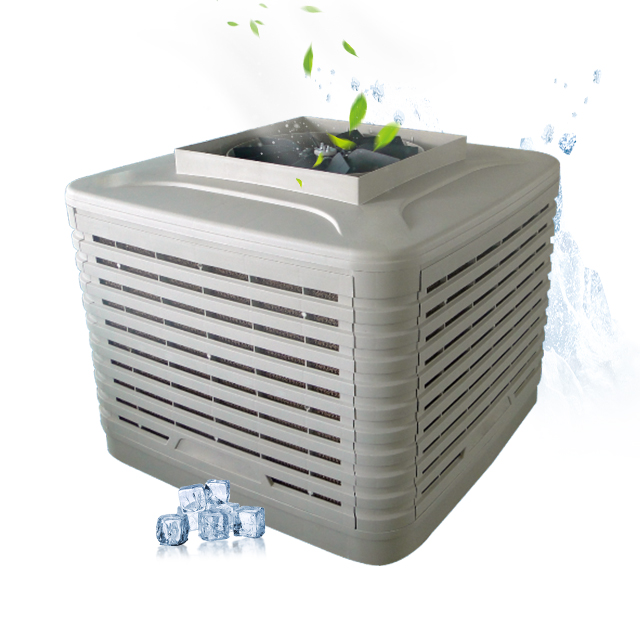

Outdoor Conditioner 18000cmh Industrial Evaporative Portable Air Cooler

Our Industrial Evaporative Air Cooler is constructed with high-strength, aging/UV/corrosion-resistant engineering plastic for >10-year structural integrity. It incorporates an upgraded side panel with lower hook louver to reduce drift/leakage, a molded removable dust filter, efficient cleanable wood pulp fiber pads, and a fully enclosed aluminum-shell motor for optimal cooling/moisture protection. Equipped with automatic water control, an open distributor for even flow, high-airflow/low-noise operation, a thermally protected flame-retardant pump, and multi-directional air outlets (top/bottom/side).

Specification:

Model/Specs	AZL18-ZX10JG
	AZL18-ZS10JG
	AZL18-ZC10JG
	X-down discharge,S-up discharge,C-side discharge
Electric source	110/220 /50-60(V/Hz) 1-phase
Power	0.75KW
Rated Current	4.0A
Airflow	18000m³/h
Fan Type	Axial
Fan Speeds	Multi-speed,Inverter
Pressure	160Pa
Vent Size (L*W)（mm）	555555 (down/up) 614614（side）
Noise	≤65dBA

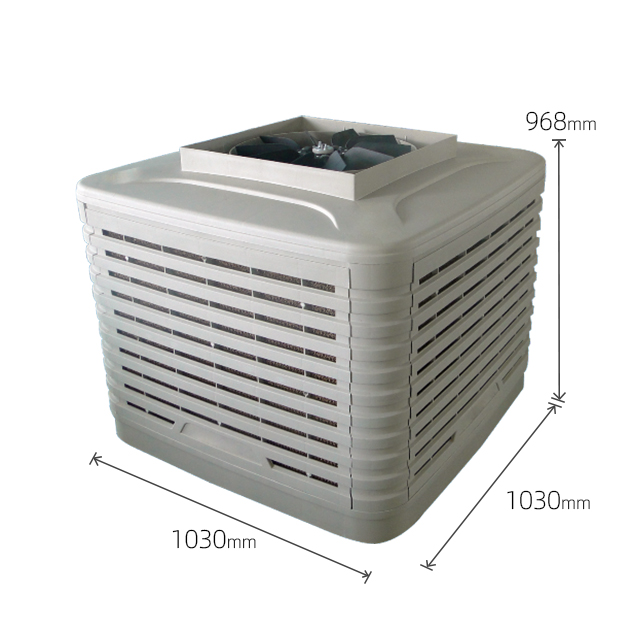

Dimension (LWH)（mm）	10301030883mm (down) 10301030968mm (up) 10301345883mm (side)
Pad Size (LWH)（mm）	638738100mm
Net Weight (±3kg)	49(down) 53(up) 55(side)
Operation Weight(kg)	67(down) 71(up) 73(side)
Controller	LED Control
Pre-dust Filter	Optional
Pre-cooling	Optional
Group-control	Optional
Tem&hum Control	Optional
QTY/FULL(40HQ)	44(down/up/side)
QTY/SKD(40HQ)	87(down)/75(up)/85(side)

Characteristics:

Special-designed fan blades

Self-designed fan, with large wind pressure

and sufficient air volume

Evaporative cooling pad with excellent material performance

Anti-bacterial evaporative cooling pad, Anti-mildew evaporative cooling pad, Anti-fire evaporative cooling pad and a series of

evaporative cooling pad products.

Thicker panel, stable and reliable quality

New thickened engineering materials,to eliminate secondary materials. High temperature resistance, strong thermal

resistance, good toughness, not easy to deformation.

Integration of injection molding is more reliable

The air outlet and the top cover are integrated injection

molding, with good waterproof and air leakage resistance.

AOLAN PERFORMANCE MOTOR

1.A new generation of energy-saving products. (2) Aluminum alloy shell,no rust, fast heat dissipation.

2.High-density of pure copper coil, low resistance consumption. (4) with sufficientpower and air volum,low temperature rise, long life.

3.Anti-burning machine, with thermat protection switch protection.

NEW THICKENED 100% ENGINEERING MATERIALS, NO SECONDARY MATERIALS!

High temperature resistance, strong thermal resistance, good toughness, anti-corrosion, anti-ultraviolet, anti-aging,long life,

Casing warranty of more than 10 years.

More advantages:

1.Durable Shell: High-strength plastic, weather/UV/corrosion resistant, 10+ year life.

2.Upgraded Leak Control: Side panel with lower hook louver.

3.Easy Maintenance: Removable molded dust filter, easy-to-clean wood pulp fiber cooling pads.

4.Protected Motor: Fully enclosed aluminum shell for heat dissipation and waterproofing.

5.Water System: Automatic control, open distributor, anti-clog, even flow.

6.Performance: High air volume, low noise, stable.

7.Safety Features: Low-water-level foot pump, flame-retardant housing, thermal protection switch.

8.Installation Flexibility: Top, bottom, and side air outlet options.
