Home Evaporative Cooling And Humidification

3590/5070/5090/7090 Evaporative Cooling Pad

Welcome to wholesale industrial air coolers from Aolan factory. Our Industrial Evaporative Air Cooler is used for small and medium-sized industrial plants, semi-open venues, outdoor exhibition venues, agricultural and animal husbandry bases, etc.

Model Specifications :
AEN95J 5090A Type
Water Absorption :
≥255%
Water Absorption Height (mm/min) :
62/10
Height H(mm) :
≤2170
Width W(mm) :
≤1000
Thickness D(mm) :
30~300
Corrugation Height h(mm) :
5
Corrugation Angle a、 β (°) :
45

Inquire Now

Categories

How can we help you?

The company adheres to the service principle of "everything for users" and has established a professional technical service team.

New Products

Description

Airflow Water Cooling Portable air Cooler Industrial Evaporative Air Cooler Warehouse Factory Cooling System

Characteristics Of Evaporative Cooling Pad

●Good water absorption and high evaporation efficiency. ●Not easy to mildew, long service life.

●Manufactured with advanced technology, no water drift. ●High structural strength, easy and fast installation.

●Low pressure drop during operation and low operating costs.

●Eco-friendly glue, no smell,no pollution, manufactured with advanced technology, no floating.

●The company's evaporative cooling pads have passed ROHS.REACH and other certifications.

Specification:

Model Specifications	Water Absorption	Water Absorption Height (mm/min)	Height H(mm)	Width W(mm)	Thickness D(mm)	Corrugation Height h(mm)	Corrugation Angle α、ß (°)
ARN95J 3590 Type	≥280%	55/10	≤2000	≤1000	100~400	3.5	45
AEN95J 3590 Type	≥280%	55/10	≤2000	≤1000	100~400	3.5	35
ARN95J 5070 Type	≥262%	61/10	≤2000	≤1000	100~400	5	45
AEN95J 5070 Type	≥262%	61/10	≤2000	≤1000	100~400	5	35
ARN95J 5090 Type	≥255%	62/10	≤2000	≤1000	30~300	5	35
AEN95J 5090 Type	≥255%	62/10	≤2170	≤1000	30~300	5	45
ARN95J 7090Type	≥238%	76/10	≤2170	≤1000	50~300	7	45

Characteristics:

Evaporative Cooling Introduction

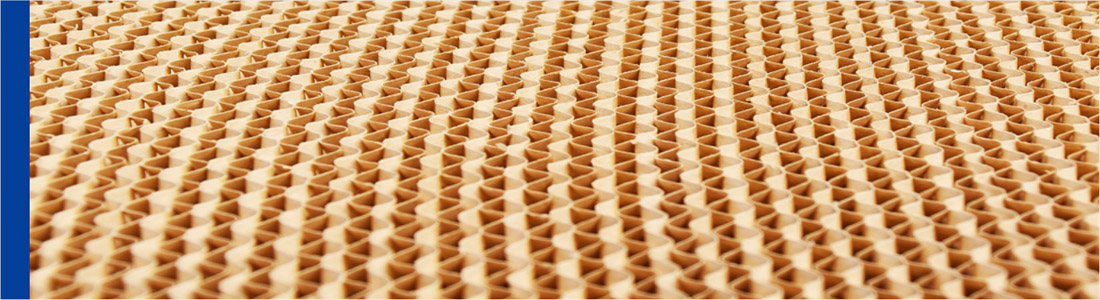

The honeycomb structure media made of high-grade corrugated fiber material by special process has the characteristics of good water absorption, high wet stiffness, anti-bacterial and anti-mildew, long service life etc.

Outdoor fresh air cooling

* An example of a evaporative cooling pad thickness of 100 mm.
