Wet Film Humidifier Definition

Wet film humidifier is a built-in humidification device of air conditioner, mainly composed of evaporative Cooling pad, fan motor, fan blade, water pump, electric control, etc. The core component of the humidification system is the evaporative cooling media-wet film. Its material is made of plant fiber with special chemical raw materials, which has good water absorption, evaporation, non-toxic, acid and alkali resistance, mold resistance, flame retardant and provides the maximum contact surface area between water and air.

Principle Of Wet Film Humidifier

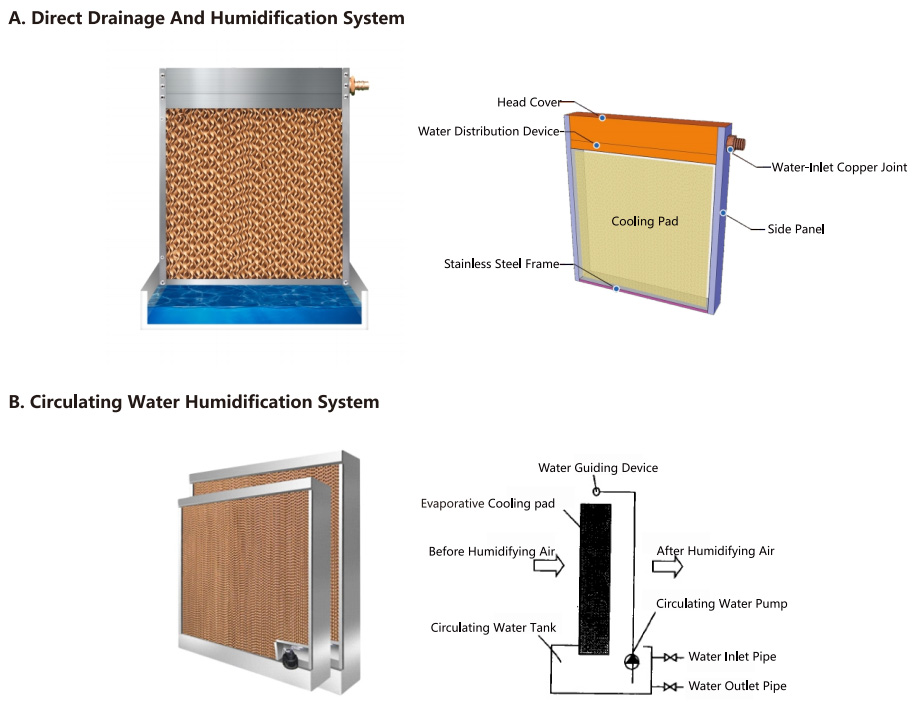

The water is sent to the sprinkler system by the pipeline through the upper water pump, and the lower part is a highly water-absorbing humidification material-wet film. Under the action of gravity, water penetrates downward along the evaporative Cooling pad material, and the water is absorbed by the evaporative Cooling Ipad material to form a uniform water film; when dry air passes through the evaporative Cooling pad material, the water molecules fully absorb the heat in the air and vaporize and evaporate, making the humidity of the air increases, creating moist air. An increase in the humidity of the air causes the temperature to drop, but the lenthalpy of the air remains the same. Wet film humidifiers are divided into direct drainage humidification and circulating water humidification.

Characteristics:

Wet Film Humidifier Features

Imported long fiber material, with good water

absorption, high wet stiffness, no mildew.



Professionally designed PVC pipe, water distribution

structure, reasonable flow, uniform water distribution, no

wearing parts, the maintenance is convenient and simple,

and the water inlet  pipe joint is made of pure copper

material, which is  acid and alkali resistant and has a long

service life.

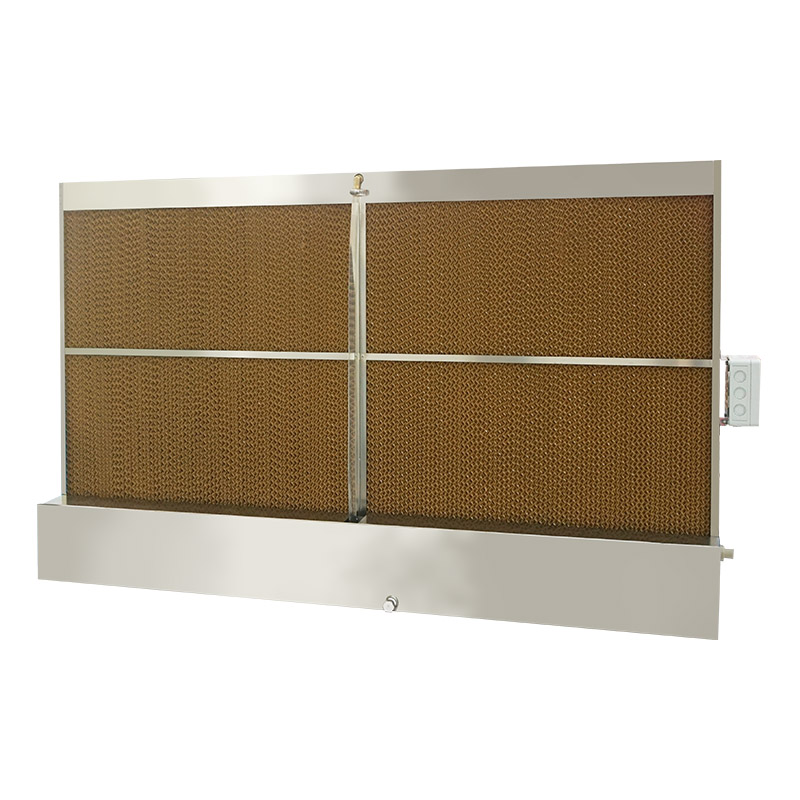

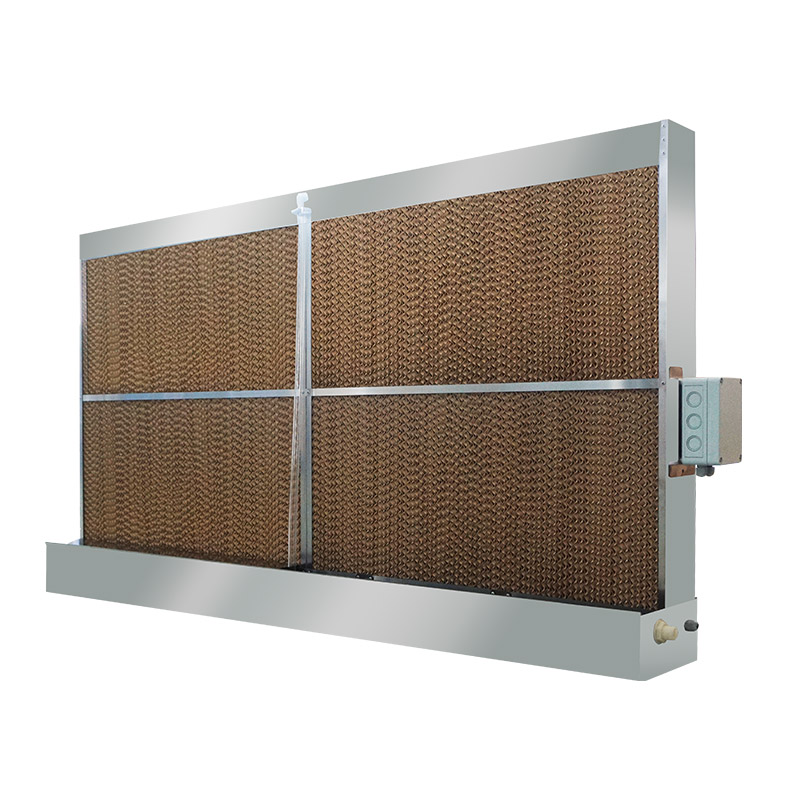

The top cover, side panels, and water tray of the wet film

humidifier are all  made of stainless steel to prevent rust

from affecting the product life after long term use. at the

same time, avoid the product rust and pollute the

evaporative cooling pad which affects the quality of the

air.

Patent Of AOLAN Wet Film Humidifier

At present, the market of wet film humidifier application of water distribution structure, the common problems are:

① Water distribution water is uneven, resulting in poor evaporative Cooling pad, evaporation efficiency is not up to standard, and then affects the performance of the whole unit is not up to standard.

② Water outlet water flow concentration, water volume is too large. After Ithe evaporative Cooling pad flow, easy to produce flying water Iphenomenon, affect the use of other equipment, easy to cause equipment leakage, especially for the wind load of the evaporative Cooling pad back side is more easier to produce leaking water.

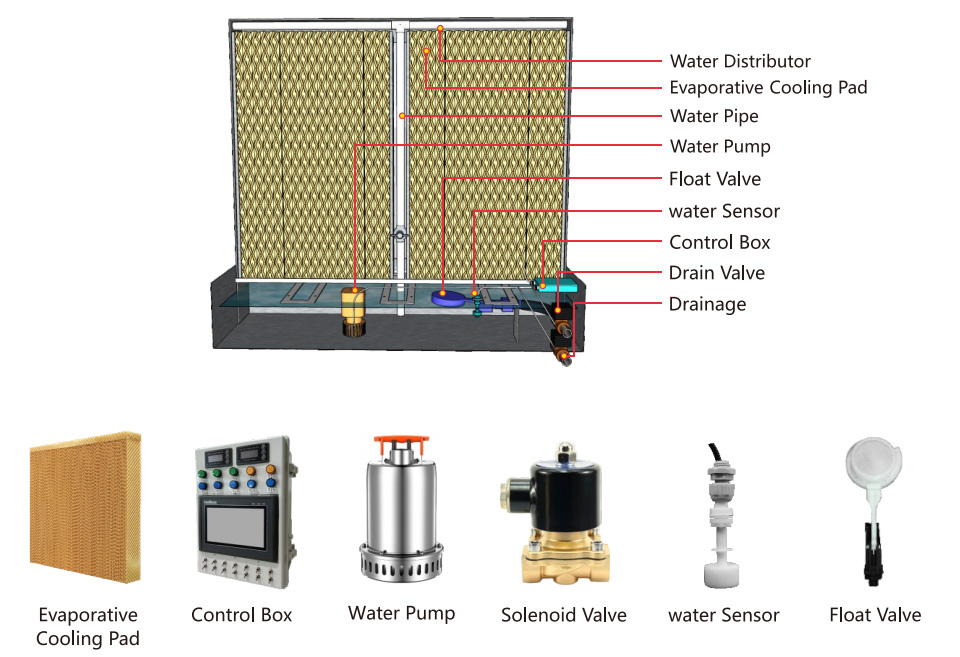

Wet Film Humidifier Accessories

Wet Film Humidifier Structure

Evaporative Cooling Introduction

The honeycomb structure media made of high-grade corrugated fiber material by special process has the characteristics of good water absorption, high wet stiffness, anti-bacterial and anti-mildew, long service life etc.

Outdoor fresh air cooling

* An example of a evaporative cooling pad thickness of 100 mm.

Humidify the indoor air

* An example of a evaporative cooling pad thickness of 35 mm.
