Home Evaporative Cooling And Humidification

Indirect Evaporative Air Cooler Heat Exchanger

Welcome to wholesale industrial air coolers from Aolan factory. Our Industrial Evaporative Air Cooler is used for small and medium-sized industrial plants, semi-open venues, outdoor exhibition venues, agricultural and animal husbandry bases, etc.

Model Specifications :
AEN95J 5090A Type
Water Absorption :
≥255%
Water Absorption Height (mm/min) :
62/10
Height H(mm) :
≤2170
Width W(mm) :
≤1000
Thickness D(mm) :
30~300
Corrugation Height h(mm) :
5
Corrugation Angle a、 β (°) :
45

Inquire Now

Categories

How can we help you?

The company adheres to the service principle of "everything for users" and has established a professional technical service team.

New Products

Description

Airflow Water Cooling Portable air Cooler Industrial Evaporative Air Cooler Warehouse Factory Cooling System

The Characteristic Of Indirect Evaporative Air Cooler Heat Exchanger

● The size of heat exchanger can be customized according to requirements.

● Modular combination for easy on-site assembly.

●The products made of ECO-friendly polymer materials.

●The product has good hydrophilicity and high evaporation efficiency.

●Preservative,strong weather resistance,high structural strength and good sealing.

●Washable and long working life.

Specification:

Model	face velocity (m/s)	evaporation efficiency (%)	Air resistance (Pa)
6mm Each piece distance	2.0-3.0	60-70	135-300
8mm Each piece distance	2.0-3.0	56-62	116-274
10mm Each piece distance	2.0-3.0	52-55	97-218
12mm Each piece distance	2.0-3.0	40-46	68-152

Characteristics:

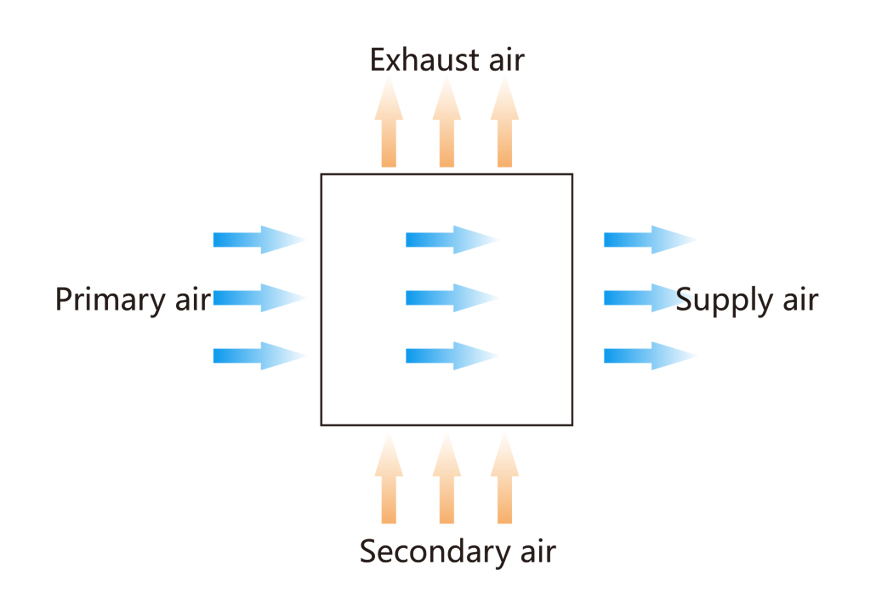

Indirect Evaporative Air Cooler Heat Exchanger Working Principle

Through the indirect heat exchanger, the air to be treated (primary air) and the wet cold air (secondary air) obtained by direct evaporative cooling are exchanged for heat, so as to realize the effect of cooling during same humidity.

Reliability Verification Of Indirect Evaporative Air Cooler Heat Exchanger

Hydroscopicity Verification

The expansion range of water absorption is 5cm.

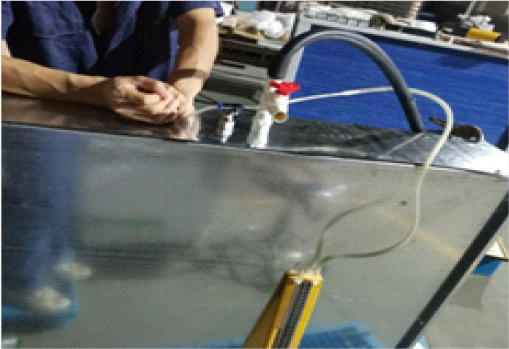

Air Impermeability Verification

120mm water column, stand for 15 minutes, no leakage.

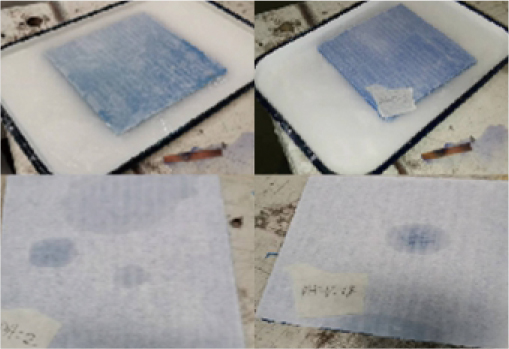

Acid And Alkali Resistance Verification

Soaked in PH=2 and PH=12 solution separately, took it out after 12hours, no abnormality were found.

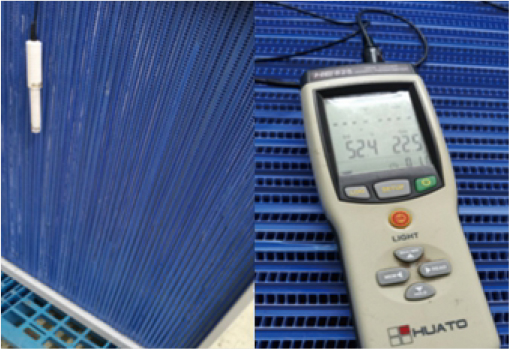

Temperature Resistance Verification

No abnormality after being placed in an environment of 50°C-60°C for a whole day.

Indirect Evaporative Air Cooler Heat Exchanger

Applicable to data centers,hospitals,schools, airports,high-speed rail station. Shopping malls, libraries, gymnasiums, exhibition halls, etc.

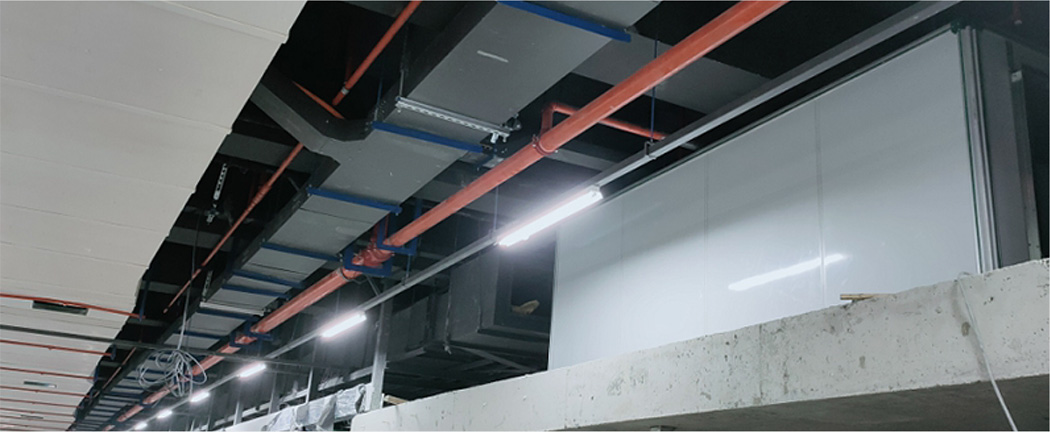

Indirect Evaporative Air Cooler For Public Medical Use

Assembling unit: Select 3 sets of Aolan's dew point indirect evaporative air cooler units,Total fresh air volume of equipment: 60000 m3/h.

Project introduction:The project uses Aolan's combined dew point indirect evaporative air cooler unit,As the cooling equipment for the public medical area on the outpatient floor of a hospital complex in northwest China,In summer and transition season, make the public medical area on all floors achieve a comfortable environment of ventilation and cooling,Provide fresh air meeting basic requirements in winter.
