Home Evaporative Cooling And Humidification

Fireproof Evaporative Cooling Pad

Welcome to wholesale industrial air coolers from Aolan factory. Our Industrial Evaporative Air Cooler is used for small and medium-sized industrial plants, semi-open venues, outdoor exhibition venues, agricultural and animal husbandry bases, etc.

Model Specifications :
ZF18M 6090 Type
Water Absorption :
≥255%
Water Absorption Height (mm/min) :
55/10
Height H(mm) :
≤800
Width W(mm) :
≤500
Thickness D(mm) :
30~300
Corrugation Height h(mm) :
6
Corrugation Angle a、 β (°) :
45

Inquire Now

Categories

How can we help you?

The company adheres to the service principle of "everything for users" and has established a professional technical service team.

New Products

Description

Airflow Water Cooling Portable air Cooler Industrial Evaporative Air Cooler Warehouse Factory Cooling System

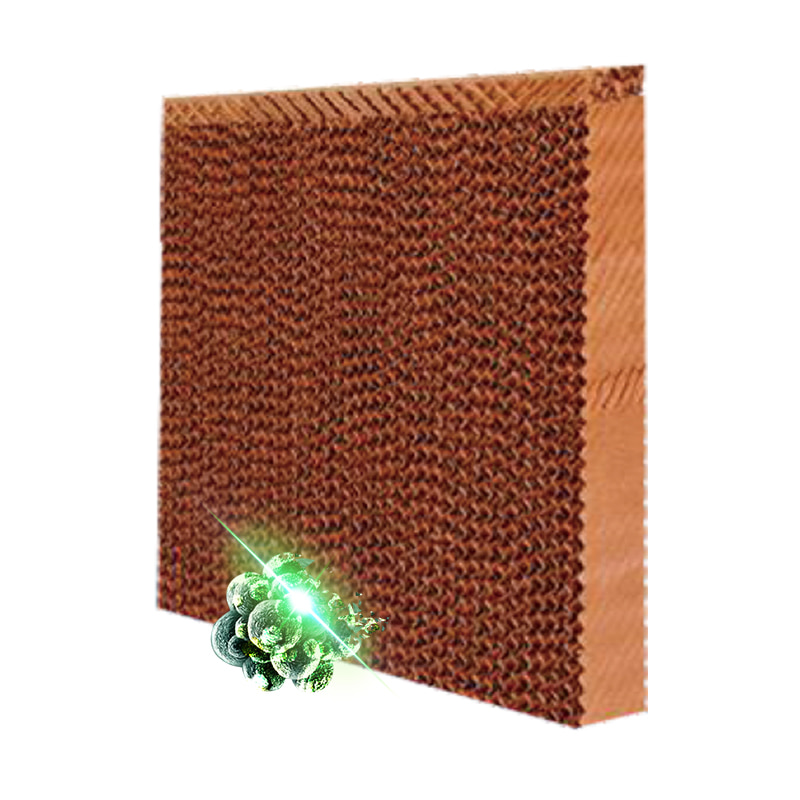

Characteristics Of Fireproof Evaporative Cooling Pad

●Imported polymer organic-inorganic composite materials are processed and formed by special technology, and the structure is firm.long lasting.

●With B1 fire rating, the combustion performance will not be reduced due to water spraying.

●Good water absorption performance, high evaporation efficiency, good cooling and humidification effect.

Specification:

Model Specifications	Water Absorption	Water Absorption Height (mm/min)	Height H(mm)	Width W(mm)	Thickness D(mm)	Corrugation Height h(mm)	Corrugation Angle α、ß (°)

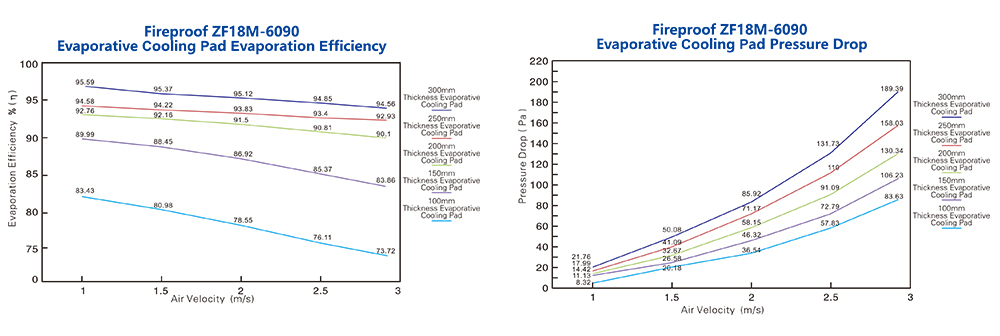

ZF18M 6090 Type	≥255%	55/10	≤800	≤500	30~300	6	45

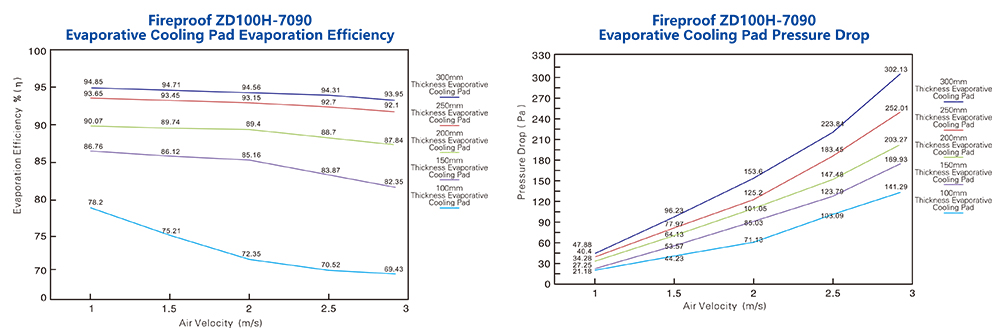

ZD100H 7090 Type	≥262%	61/10	≤800	≤500	50~300	7	45
ZB22Z 5090Type	≥255%	62/10	≤2170	≤1000	30~300	5	45

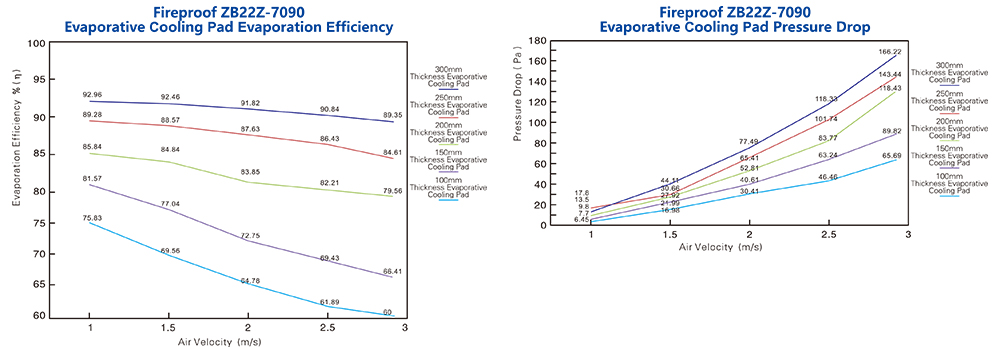

ZB22Z 7090 Type	≥238%	76/10	≤2170	≤1000	50~300	7	45

Characteristics:

Evaporative Cooling Introduction

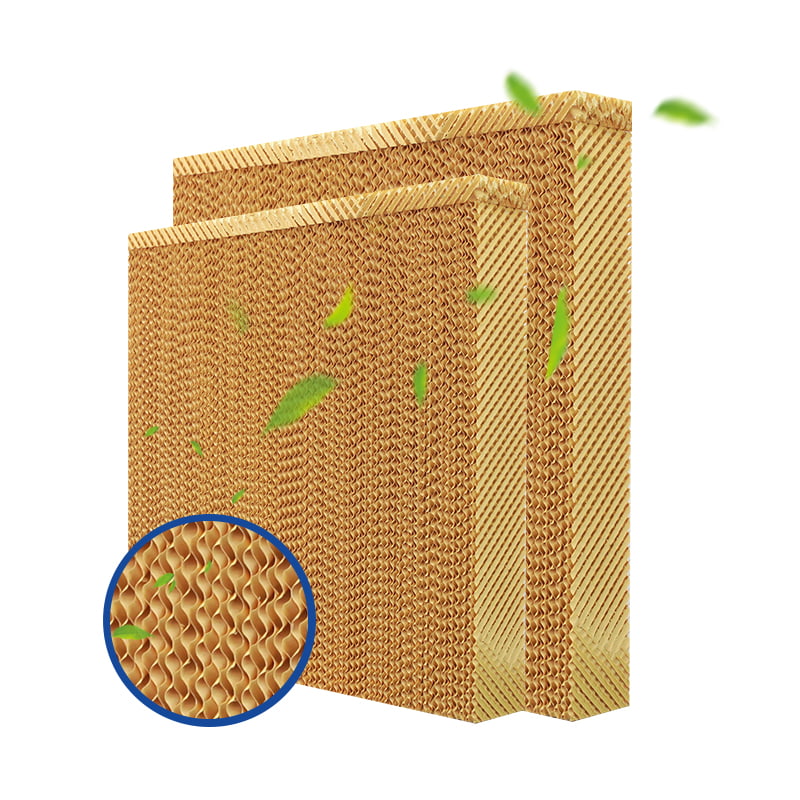

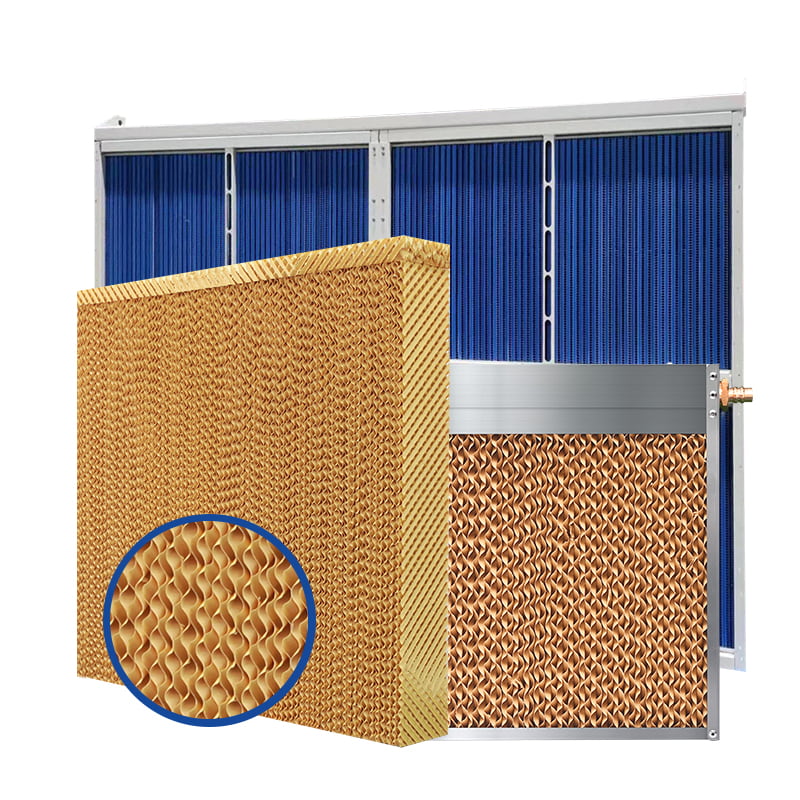

The honeycomb structure media made of high-grade corrugated fiber material by special process has the characteristics of good water absorption, high wet stiffness, anti-bacterial and anti-mildew, long service life etc.

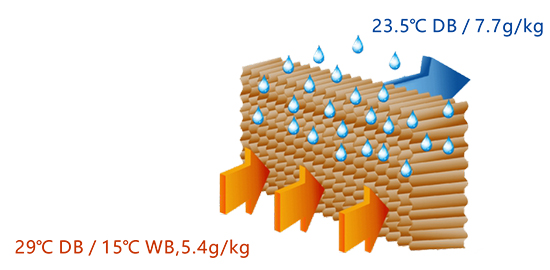

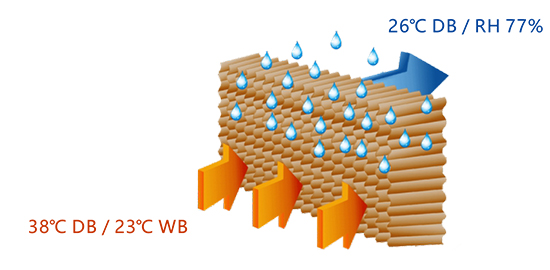

Outdoor fresh air cooling

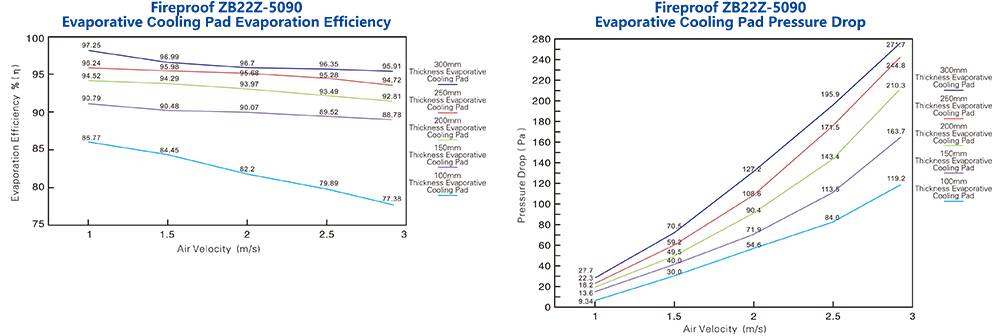

* An example of a evaporative cooling pad thickness of 100 mm.
